10/100/1000
1x1 Copper Tap

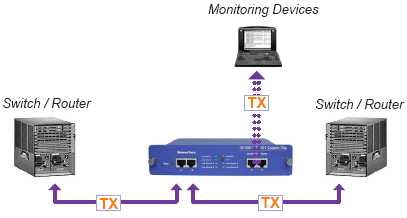

 PRODUCT DESCRIPTION The Gigabit 1X1 Copper allows the uninterrupted pass through of full duplex data over standard UTP Category 5 copper cable. Featuring auto negotiating between 10Mbps, 100Mbps and 1000Mbps this Tap will duplicate the network signals (including any existing line errors) to the transmitonly monitoring ports. The Tap will also correct for any wiring errors such as pair swaps, polarity or MDI/X cabling. The tap will also propagate the network link condition, thus allowing for use in redundant link systems. Multiple LEDs provide useful speed & activity indication for easy installation and troubleshooting in the event of connection to faulty network equipment. GENERAL APPLICATION VSS monitoring Taps provide the highest performing and most cost effective access devices for passively monitoring your network. Through a new generation of access devices designed for use with Analyzers, IDS and IPS equipment VSS monitoring ensures its users total Visibility, Stealth and Security in the network monitoring process. Intended for permanent installation across the entire network these devices allow the user to plug and play multiple monitoring devices without disrupting the existing network connection. Additionally these Taps provide an invaluable frontline of defense by preventing the monitoring device from being seen or hacked by intruders. Designed to maintain network connectivity during power loss, these Taps also consistently deliver zero data loss while replicating network traffic to the monitoring ports even when cable lengths exceed the 100m IEEE limit. ACCESSORIES
FEATURES
BENEFITS
OPTIONS
CERTIFICATIONS
 TECHNICAL SPECIFICATIONS Mechanical
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
